AUTOMOTIVE DRIVER

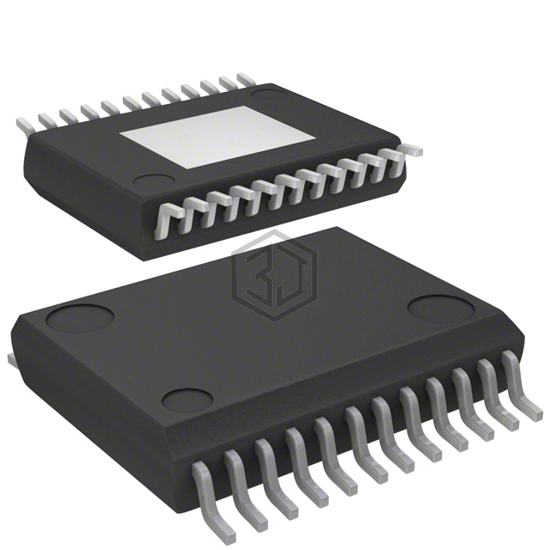

NCV7726DQBR2G is a PMIC - Full, Half-Bridge Drivers manufactured by onsemi. AUTOMOTIVE DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 3.15V ~ 5.25V, package / case 24-LSSOP (0.154", 3.90mm Width) Exposed Pad.
In Stock: 5,498
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge (12) |
| Applications | DC Motors, General Purpose |
| Interface | Logic, SPI |
| Load Type | Inductive |
| Technology | NMOS |
| Rds On (Typ) | 850mOhm LS, 850mOhm HS |
| Current - Output / Channel | 500mA |
| Current - Peak Output | 1.1A |
| Voltage - Supply | 3.15V ~ 5.25V |
| Voltage - Load | 5.5V ~ 32V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Features | Charge Pump |
| Fault Protection | Over Current, Over Temperature, Over Voltage, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 24-SSOP-EP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCV7726DQAR2G | onsemi | AUTOMOTIVE DRIVER | 100% | View |
| TLE94112ELXUMA1 | Infineon Technologies | IC DRIVER HALF-BRIDGE 24SSOP | 91% | View |
Submit your RFQ for NCV7726DQBR2G and get a quote within 24 hours.
