6 CHANNEL HALF-BRIDGE DRIVER

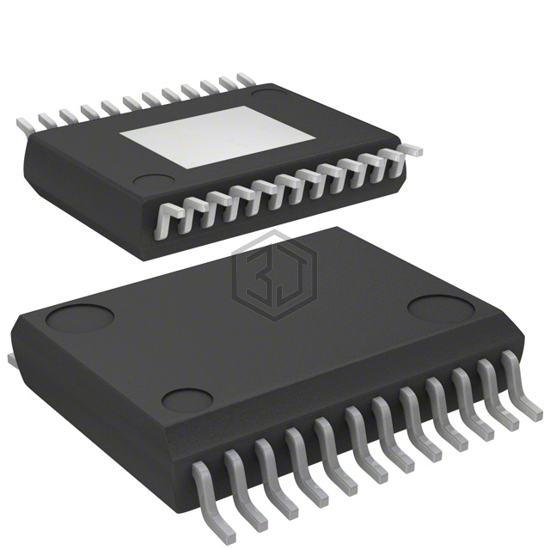

NCV7723DQBR2G is a PMIC - Full, Half-Bridge Drivers manufactured by onsemi. 6 CHANNEL HALF-BRIDGE DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 3.15V ~ 5.25V, package / case 24-LSSOP (0.154", 3.90mm Width) Exposed Pad.
In Stock: 4,998
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge (3) |
| Applications | DC Motors, General Purpose |
| Interface | Logic, PWM, SPI |
| Load Type | Capacitive and Resistive |
| Technology | NMOS |
| Rds On (Typ) | 800mOhm LS, 800mOhm HS |
| Current - Output / Channel | 500mA |
| Current - Peak Output | 1.1A |
| Voltage - Supply | 3.15V ~ 5.25V |
| Voltage - Load | 3.15V ~ 5.25V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Features | Charge Pump |
| Fault Protection | Over Current, Over Temperature, Over Voltage, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 24-SSOP-EP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCV7725DQBR2G | onsemi | 10 CHANNEL HALF-BRIDGE DRIVER | 100% | View |
| NCV7703BD2R2G | onsemi | IC DVR HALF BRIDGE TRPL 14SOIC | 90% | View |
| NCV7703D2G | onsemi | IC DRVR HALF BRIDGE TRPL 14-SOIC | 90% | View |
| NCV7703D2R2G | onsemi | IC DRVR HALF BRIDGE TRPL 14-SOIC | 90% | View |
| ATA6826C-TUQW | Microchip Technology | IC MOTOR DRIVER DMOS 14SOIC | 60% | View |
| ATA6832C-PIQW-1 | Microchip Technology | IC HALF-BRIDGE DRVR SPI 18QFN | 56% | View |
Submit your RFQ for NCV7723DQBR2G and get a quote within 24 hours.
