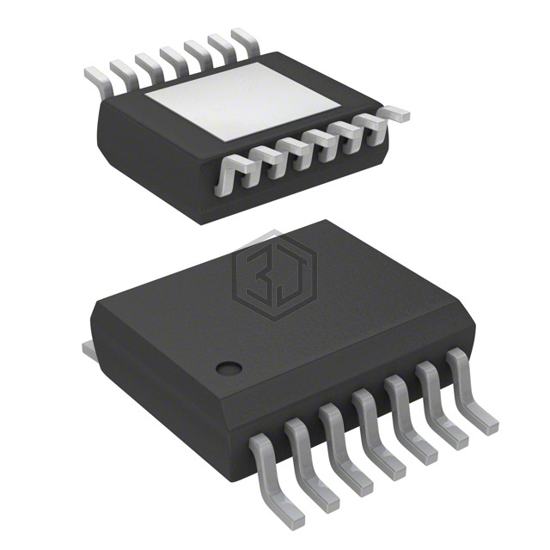

IC PWR SWTCH BIPOLAR 1:1 14TSSOP
NCV47822PAAJR2G is a PMIC - Power Distribution Switches, Load Drivers manufactured by onsemi. IC PWR SWTCH BIPOLAR 1:1 14TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 14-TSSOP (0.173", 4.40mm Width) Exposed Pad.
In Stock: 4,769
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 2 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | Bipolar |
| Interface | On/Off |
| Voltage - Load | 4.4V ~ 40V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 350mA |
| Rds On (Typ) | - |
| Input Type | Non-Inverting |
| Features | Status Flag |
| Fault Protection | Current Limiting (Adjustable), Over Temperature |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-TSSOP-EP |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DB002-02E | NVE Corp/Sensor Products | IC PWR SWITCH BIPOLAR 1:1 8SOIC | 76% | View |
| DB002-02 | NVE Corp/Sensor Products | IC PWR SWITCH BIPOLAR 1:1 8SOIC | 76% | View |
| NCV47722PAAJR2G | onsemi | IC PWR SWTCH BIPOLAR 1:1 14TSSOP | 75% | View |
| NCV47823PAAJR2G | onsemi | IC PWR SWTCH BIPOLAR 1:2 14TSSOP | 71% | View |
Submit your RFQ for NCV47822PAAJR2G and get a quote within 24 hours.
