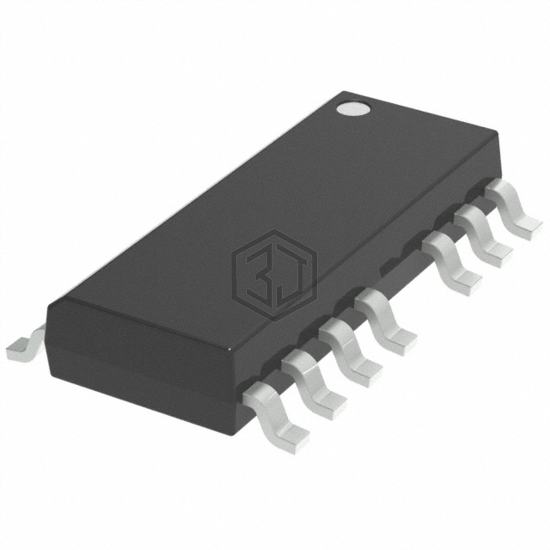

IC OFFLINE SW HALF-BRDG 16SOIC
NCV1397ADR2G is a PMIC - AC DC Converters, Offline Switchers manufactured by onsemi. IC OFFLINE SW HALF-BRDG 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 9.5V ~ 20V, package / case 16-SOIC (0.154", 3.90mm Width), 15 Leads.
In Stock: 2,821
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Half-Bridge |
| Voltage - Start Up | 10.5 V |
| Voltage - Supply (Vcc/Vdd) | 9.5V ~ 20V |
| Duty Cycle | 50% |
| Frequency - Switching | 60kHz ~ 500kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit |
| Control Features | Frequency Control |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package / Case | 16-SOIC (0.154", 3.90mm Width), 15 Leads |
| Supplier Device Package | 16-SOIC |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCV1063AD060R2G | onsemi | IC OFFLINE SW MULT TOP 16SOIC | 98% | View |
| VIPER28LDTR | STMicroelectronics | IC OFFLINE SWITCH FLYBACK 16SO | 94% | View |
| VIPER26LDTR | STMicroelectronics | IC OFFLINE SWITCH FLYBACK 16SO | 94% | View |
| VIPER013LS | STMicroelectronics | IC OFFLINE SW MULT TOP 10SSOP | 87% | View |
| VIPER0PLDTR | STMicroelectronics | IC OFFLINE SWITCH MULT TOP 16SO | 86% | View |
| VIPER113LSTR | STMicroelectronics | IC OFFLINE SW MULT TOP 10SSOP | 84% | View |
Submit your RFQ for NCV1397ADR2G and get a quote within 24 hours.
