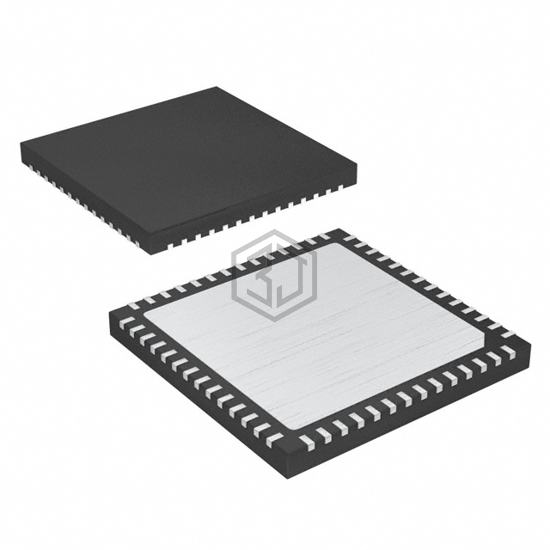

IC PWR DRIVER N-CHAN 1:1 56QFN
NCP5360RMNR2G is a PMIC - Power Distribution Switches, Load Drivers manufactured by onsemi. IC PWR DRIVER N-CHAN 1:1 56QFN. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 150°C (TJ), voltage - load 4.5V ~ 25V, package / case 56-VFQFN Exposed Pad.
In Stock: 8,672
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side or Low Side |
| Output Type | N-Channel |
| Interface | - |
| Voltage - Load | 4.5V ~ 25V |
| Voltage - Supply (Vcc/Vdd) | - |
| Current - Output (Max) | 40A |
| Rds On (Typ) | - |
| Input Type | - |
| Features | PWM Input |
| Fault Protection | Over Temperature, UVLO |
| Operating Temperature | 0°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 56-QFN (8x8) |
| Package / Case | 56-VFQFN Exposed Pad |
NCP5360RMNR2G is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCP5360AMNR2G | onsemi | IC PWR DRIVER N-CHAN 1:1 56QFN | 100% | View |
| SCP302155MNTWG | onsemi | IC POWER DRIVER P-CH 31PQFN | 84% | View |
| NCP81391AMNTXG | onsemi | IC PWR DRIVER N-CHAN 1:1 31QFN | 55% | View |
| NCP81391MNTXG | onsemi | IC PWR DRIVER N-CHAN 1:1 31QFN | 55% | View |
Submit your RFQ for NCP5360RMNR2G and get a quote within 24 hours.
