IC PWR SWITCH N-CHAN 1:1 12DFN

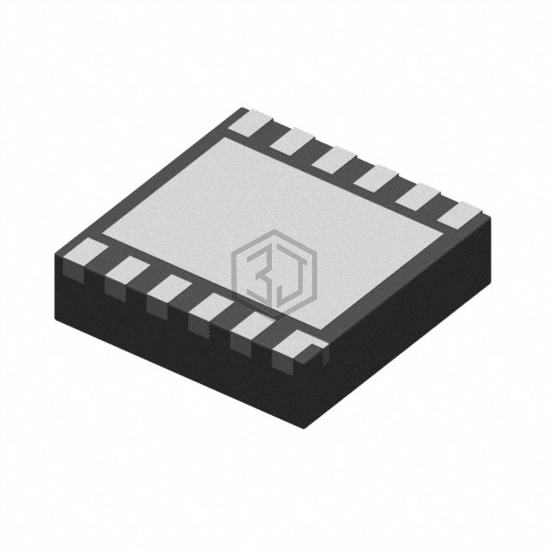

NCP45540IMNTWG-L is a PMIC - Power Distribution Switches, Load Drivers manufactured by onsemi. IC PWR SWITCH N-CHAN 1:1 12DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 3V ~ 5.5V, package / case 12-VFDFN Exposed Pad.
In Stock: 7,465
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 0.5V ~ 13.5V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Current - Output (Max) | 20A |
| Rds On (Typ) | 4.8mOhm |
| Input Type | Non-Inverting |
| Features | Power Good, Slew Rate Controlled |
| Fault Protection | Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 12-DFN (3x3) |
| Package / Case | 12-VFDFN Exposed Pad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCP45541IMNTWG-L | onsemi | IC PWR SWITCH N-CHAN 1:1 12DFN | 100% | View |
| TPS1HA08EQPWPRQ1 | Texas Instruments | POWER MANAGEMENT | 71% | View |
| BTS61101SJAXUMA2 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 DSO-8 | 71% | View |
| VN16BSPTR-E | STMicroelectronics | IC PWR DRIVER N-CHAN 1:1 PWRSO10 | 71% | View |
| NCP45770IMN24TWG | onsemi | 770 MCM | 71% | View |
| NCP45790IMN24RTWG | onsemi | SOLITUDE 790 MCM | 71% | View |
Submit your RFQ for NCP45540IMNTWG-L and get a quote within 24 hours.
