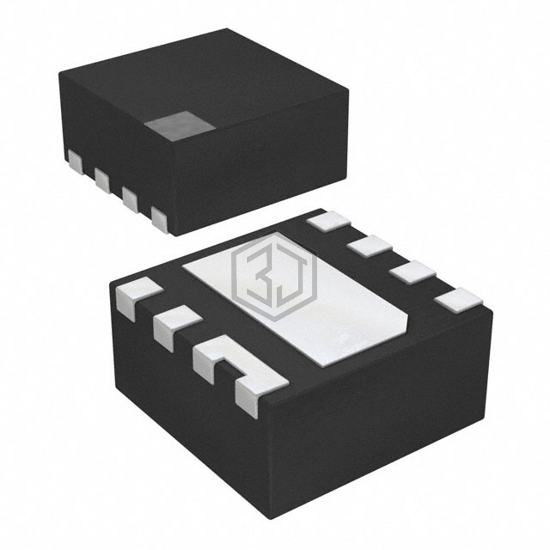

IC PWR SWITCH N-CHAN 1:1 8DFN
NCP45520IMNTWG-L is a PMIC - Power Distribution Switches, Load Drivers manufactured by onsemi. IC PWR SWITCH N-CHAN 1:1 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 3V ~ 5.5V, package / case 8-VFDFN Exposed Pad.
In Stock: 4,461
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 0.5V ~ 13.5V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Current - Output (Max) | 10.5A |
| Rds On (Typ) | 12.8mOhm |
| Input Type | Non-Inverting |
| Features | Slew Rate Controlled |
| Fault Protection | Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DFN (2x2) |
| Package / Case | 8-VFDFN Exposed Pad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCP45520IMNTWG-H | onsemi | IC PWR SWITCH N-CHAN 1:1 8DFN | 100% | View |
| NCP45521IMNTWG-L | onsemi | IC PWR SWITCH N-CHAN 1:1 8DFN | 100% | View |
| DML3006LFDS-7 | Diodes Incorporated | IC PWR SWITCH N-CHAN 1:1 8VDFN | 100% | View |
| DML3011ALFDS-7 | Diodes Incorporated | MOSFET BVDSS: 25V~30V V-DFN2020- | 100% | View |
| TPS27SA08CQPWPRQ1 | Texas Instruments | AUTOMOTIVE, 36-V, 8-M, 1-CH SMAR | 70% | View |
| TPS22990NDMLR | Texas Instruments | IC PWR SWITCH N-CHAN 1:1 10WSON | 70% | View |
Submit your RFQ for NCP45520IMNTWG-L and get a quote within 24 hours.
