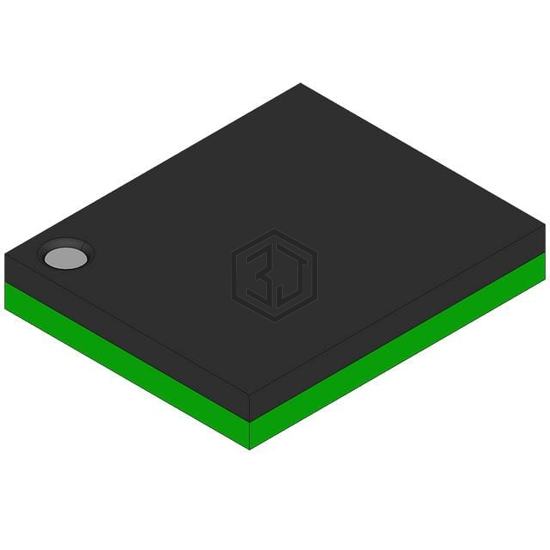

IC PWR SWITCH P-CHAN 2:1 20WLCSP
NCP3902FCCTBG is a PMIC - Power Distribution Switches, Load Drivers manufactured by onsemi. IC PWR SWITCH P-CHAN 2:1 20WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply (vcc/vdd) 9V ~ 15V, package / case 20-UFBGA, WLCSP.
In Stock: 5,392
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 2:1 |
| Output Configuration | High Side |
| Output Type | P-Channel |
| Interface | USB |
| Voltage - Load | 2.3V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | 9V ~ 15V |
| Current - Output (Max) | 5A |
| Rds On (Typ) | 95mOhm |
| Input Type | Differential |
| Features | Sleep Mode |
| Fault Protection | Current Limiting, Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-WLCSP (1.66x2.26) |
| Package / Case | 20-UFBGA, WLCSP |
NCP3902FCCTBG is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCV7748D2R2G | onsemi | IC PWR DRIVER P-CHAN 2:1 14SOIC | 100% | View |
| NCP302045MNTWG | onsemi | IC PWR DRIVER P-CHAN 2:1 31PQFN | 88% | View |
| NCP302035MNTWG | onsemi | IC PWR DRIVER P-CHAN 2:1 31PQFN | 88% | View |
| SCP302045MNTWG | onsemi | IC PWR DRIVER P-CHAN 2:1 31PQFN | 88% | View |
| NCP302040MNTWG | onsemi | IC PWR DRIVER P-CHAN 2:1 31PQFN | 88% | View |
| MP5087GG-P | Monolithic Power Systems Inc. | IC PWR SWITCH P-CHAN 1:1 12QFN | 60% | View |
Submit your RFQ for NCP3902FCCTBG and get a quote within 24 hours.
