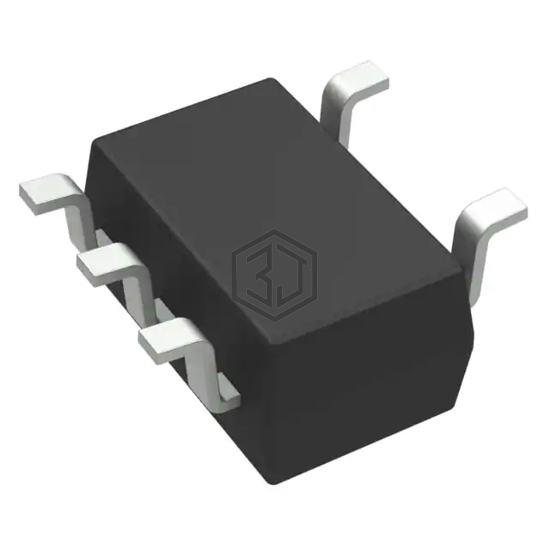

IC PWR SWITCH P-CHAN 1:1 5TSOP
NCP380HSN05AAT2G is a PMIC - Power Distribution Switches, Load Drivers manufactured by onsemi. IC PWR SWITCH P-CHAN 1:1 5TSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case SOT-23-5 Thin, TSOT-23-5.
In Stock: 3,762
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | P-Channel |
| Interface | On/Off |
| Voltage - Load | 2.5V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 500mA |
| Rds On (Typ) | 70mOhm |
| Input Type | Non-Inverting |
| Features | Slew Rate Controlled, Status Flag |
| Fault Protection | Current Limiting (Fixed), UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 5-TSOP |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
NCP380HSN05AAT2G is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MIC2033-05BYMT-TR | Microchip Technology | IC PWR SWITCH P-CHAN 1:1 6TDFN | 100% | View |
| XC8107AD05ER-G | Torex Semiconductor Ltd | IC PWR SWITCH P-CHAN 1:1 6USPC | 100% | View |
| LM3525M-L | Texas Instruments | IC PWR SWITCH P-CHAN 1:1 8SOIC | 99% | View |
| LM3525M-H/NOPB | Texas Instruments | IC PWR SWITCH P-CHAN 1:1 8SOIC | 99% | View |
| LM3525MX-L/NOPB | Texas Instruments | IC PWR SWITCH P-CHAN 1:1 8SOIC | 99% | View |
| NCP382HD05AAR2G | onsemi | IC PWR SWITCH P-CHAN 1:2 8SOIC | 88% | View |
Submit your RFQ for NCP380HSN05AAT2G and get a quote within 24 hours.
