IC OFFLINE SW FLYBACK 16TSSOP

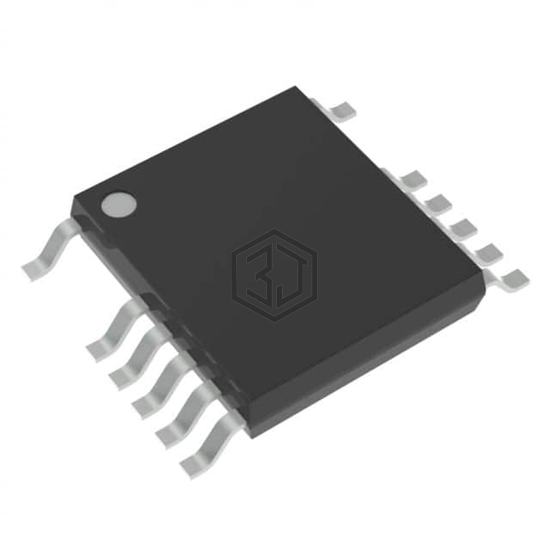

NCP1568G04DBR2G is a PMIC - AC DC Converters, Offline Switchers manufactured by onsemi. IC OFFLINE SW FLYBACK 16TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 10V ~ 27V, package / case 16-TSSOP (0.173", 4.40mm Width), 12 Leads.
In Stock: 6,654
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 15.2 V |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 27V |
| Duty Cycle | 79% |
| Frequency - Switching | 100kHz ~ 1MHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Power, Over Temperature, Over Voltage, Short Circuit |
| Control Features | Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width), 12 Leads |
| Supplier Device Package | 16-TSSOP |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TOP210GN | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SMD | 100% | View |
| TOP222GN | Power Integrations | IC OFFLINE SWITCH MULT TOP 8SMD | 100% | View |
| INN3276C-H204-TL | Power Integrations | IC OFFLINE SW MULT TOP 24INSOP | 100% | View |
| INN3276C-H203-TL | Power Integrations | IC OFFLINE SW MULT TOP 24INSOP | 100% | View |
| INN3266C-H206-TL | Power Integrations | IC OFFLINE SW MULT TOP 24INSOP | 100% | View |
| NCP1060BD100R2G | onsemi | IC OFFLINE SW MULT TOP 10SOIC | 88% | View |
Submit your RFQ for NCP1568G04DBR2G and get a quote within 24 hours.
