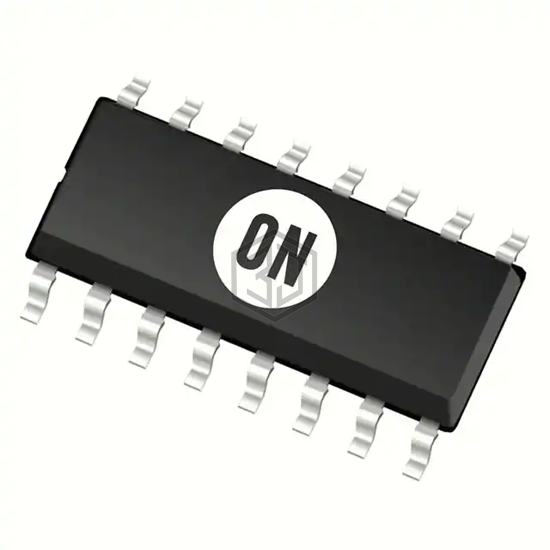

IC OFFLINE SW HALF-BRDG 16SOIC
NCP13992AADR2G is a PMIC - AC DC Converters, Offline Switchers manufactured by onsemi. IC OFFLINE SW HALF-BRDG 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -50°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 20V, package / case 16-SOIC (0.154", 3.90mm Width), 14 Leads.
In Stock: 1,208
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Half-Bridge |
| Voltage - Start Up | 9 V |
| Voltage - Supply (Vcc/Vdd) | 20V |
| Duty Cycle | 50% |
| Frequency - Switching | 20kHz ~ 750kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Over Power, Over Temperature, Over Voltage, Short Circuit |
| Control Features | EN, Frequency Control, Soft Start, Sync |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Package / Case | 16-SOIC (0.154", 3.90mm Width), 14 Leads |
| Supplier Device Package | 16-SOIC |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCP13992AEDR2G | onsemi | IC OFFLINE SW HALF-BRDG 16SOIC | 90% | View |
| NCP13992AGDR2G | onsemi | IC OFFLINE SW HALF-BRDG 16SOIC | 90% | View |
| NCP13992ACDR2G | onsemi | IC OFFLINE SW HALF-BRDG 16SOIC | 86% | View |
| NCP13992AWDR2G | onsemi | HIGH PERF CURRENT MODE RESONANT | 86% | View |
| NCP1399ANDR2G | onsemi | IC OFFLINE SW HALF-BRDG 16SOIC | 82% | View |
| NCP13992AKDR2G | onsemi | HIGH PERF CURRENT MODE RE | 82% | View |
Submit your RFQ for NCP13992AADR2G and get a quote within 24 hours.
