IC OFFLINE SW HALF-BRDG 16SOIC

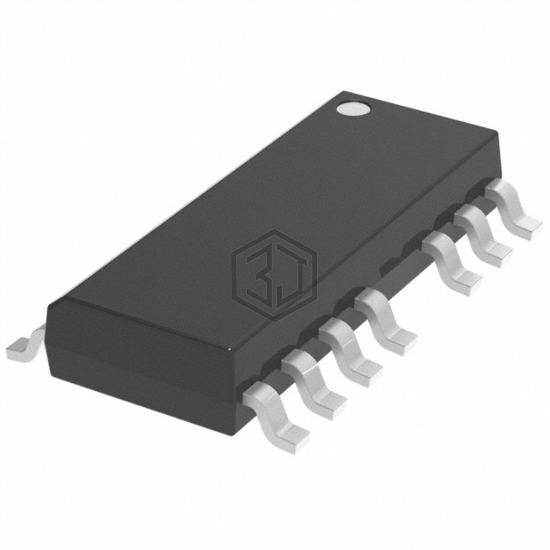

NCP1398CDR2G is a PMIC - AC DC Converters, Offline Switchers manufactured by onsemi. IC OFFLINE SW HALF-BRDG 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 9.5V ~ 20V, package / case 16-SOIC (0.154", 3.90mm Width), 15 Leads.
In Stock: 7,980
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Half-Bridge |
| Voltage - Start Up | 10.5 V |
| Voltage - Supply (Vcc/Vdd) | 9.5V ~ 20V |
| Duty Cycle | 50% |
| Frequency - Switching | 50kHz ~ 750kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit |
| Control Features | Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 16-SOIC (0.154", 3.90mm Width), 15 Leads |
| Supplier Device Package | 16-SOIC |
| Mounting Type | Surface Mount |
NCP1398CDR2G is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ICE2QR0665GXUMA1 | Infineon Technologies | IC OFFLINE SWITCH FLYBACK 12DSO | 89% | View |
| ICE2QR2280GXUMA1 | Infineon Technologies | IC OFFLINE SWITCH FLYBACK 12DSO | 89% | View |
| ICE2QR2280G1XUMA1 | Infineon Technologies | IC OFFLINE SWITCH FLYBACK 12DSO | 89% | View |
| ICE2QS03GXUMA1 | Infineon Technologies | IC OFFLINE SWITCH FLYBACK 8DSO | 89% | View |
| ICE2QR1765GXUMA1 | Infineon Technologies | IC OFFLINE SWITCH FLYBACK 12DSO | 89% | View |
| ICE2QR4765GXUMA1 | Infineon Technologies | IC OFFLINE SWITCH FLYBACK 12DSO | 89% | View |
Submit your RFQ for NCP1398CDR2G and get a quote within 24 hours.
