QUASI-RESONANT FLYBACK CONTROLLE

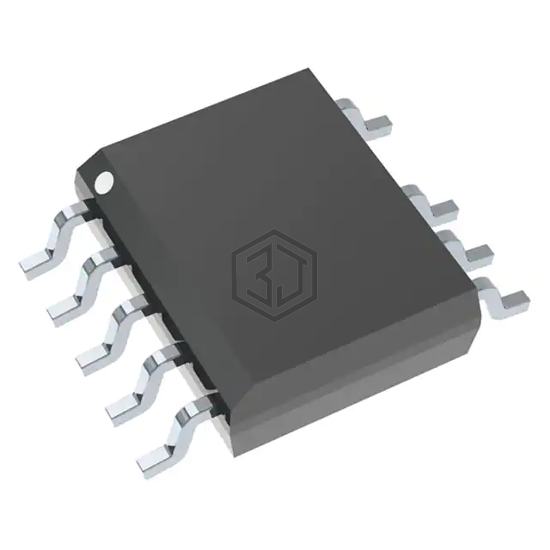

NCP1343AMDCDBD1R2G is a PMIC - AC DC Converters, Offline Switchers manufactured by onsemi. QUASI-RESONANT FLYBACK CONTROLLE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 9V ~ 28V, package / case 10-SOP (0.154", 3.90mm Width), 9 Leads.
In Stock: 4,619
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | 17 V |
| Voltage - Supply (Vcc/Vdd) | 9V ~ 28V |
| Duty Cycle | 75% |
| Frequency - Switching | 25kHz ~ 500kHz |
| Power (Watts) | 330 mW |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package / Case | 10-SOP (0.154", 3.90mm Width), 9 Leads |
| Supplier Device Package | 9-SOIC |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCP1342AMDCDD1R2G | onsemi | HIGH FREQUENCY QUASI-RESONANT FL | 100% | View |
| NCP1342ANACCED1R2G | onsemi | HIGH FREQUENCY QUASI-RESONANT FL | 100% | View |
| TEA18361T/1J | NXP USA Inc. | IC OFFLINE SWITCH FLYBACK 14SO | 73% | View |
| TEA18362LT/2J | NXP USA Inc. | IC OFFLINE SWITCH FLYBACK 8SO | 73% | View |
| TEA18363LT/1J | NXP USA Inc. | IC OFFLINE SWITCH FLYBACK 8SO | 73% | View |
| HF500GS-15-Z | Monolithic Power Systems Inc. | IC OFFLINE SWITCH FLYBACK 8SOIC | 72% | View |
Submit your RFQ for NCP1343AMDCDBD1R2G and get a quote within 24 hours.
