IC OFFLINE SWITCH FLYBACK 7SOIC

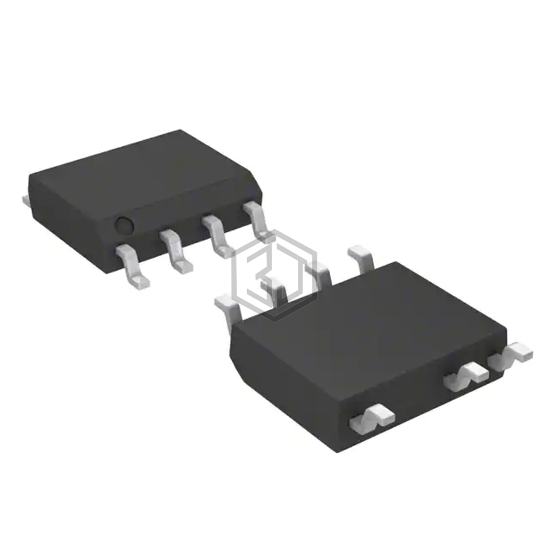

NCP1271D100R2G is a PMIC - AC DC Converters, Offline Switchers manufactured by onsemi. IC OFFLINE SWITCH FLYBACK 7SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 10V ~ 20V, package / case 8-SOIC (0.154", 3.90mm Width), 7 Leads.
In Stock: 2,499
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 12.6 V |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 20V |
| Duty Cycle | 80% |
| Frequency - Switching | 100kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | 7-SOIC |
| Mounting Type | Surface Mount |
NCP1271D100R2G is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNK586GG-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SMD | 100% | View |
| LNK623DG-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SO | 100% | View |
| INN2215K-TL | Power Integrations | IC OFFLINE SW MULT TOP 16ESOP | 100% | View |
| LNK564DG-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SO | 100% | View |
| INN3266C-H207-TL | Power Integrations | IC OFFLINE SW MULT TOP 24INSOP | 100% | View |
| INN3268C-H202-TL | Power Integrations | IC OFFLINE SW MULT TOP 24INSOP | 100% | View |
Submit your RFQ for NCP1271D100R2G and get a quote within 24 hours.
