IC OFFLINE SWITCH FLYBACK 6TSOP

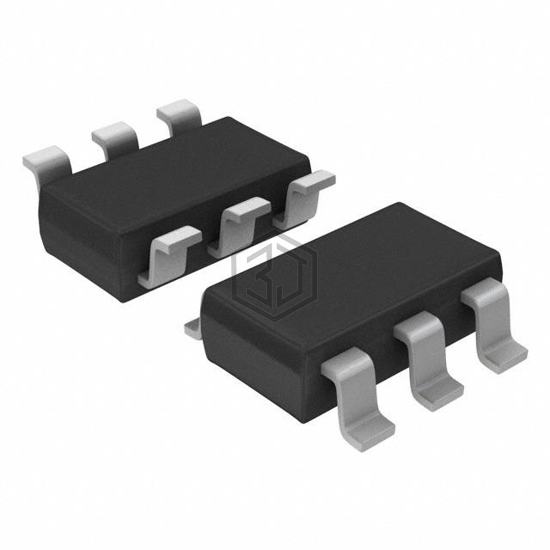

NCP1253BSN100T1G is a PMIC - AC DC Converters, Offline Switchers manufactured by onsemi. IC OFFLINE SWITCH FLYBACK 6TSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 8.8V ~ 28V, package / case SOT-23-6 Thin, TSOT-23-6.
In Stock: 8,588
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 18 V |
| Voltage - Supply (Vcc/Vdd) | 8.8V ~ 28V |
| Duty Cycle | 80% |
| Frequency - Switching | 100kHz |
| Power (Watts) | - |
| Fault Protection | Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | 6-TSOP |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCP1011ST100T3G | onsemi | IC OFFLINE SWITCH FLYBACK SOT223 | 99% | View |
| STR6S161HXD | Sanken Electric USA Inc. | AC/DC CONVERTER IC (INTEGRATED M | 97% | View |
| ICE5AR4770AG1XUMA1 | Infineon Technologies | COOLSET | 97% | View |
| ICE2A0565G | Infineon Technologies | IC OFFLINE SWITCH | 96% | View |
| UCC287506DBVR | Texas Instruments | CURRENT-MODE FLYBACK CONTROLLER | 96% | View |
| IDP2303AXUMA1 | Infineon Technologies | IC OFFLINE SW HALF-BRDG 16DSO | 76% | View |
Submit your RFQ for NCP1253BSN100T1G and get a quote within 24 hours.
