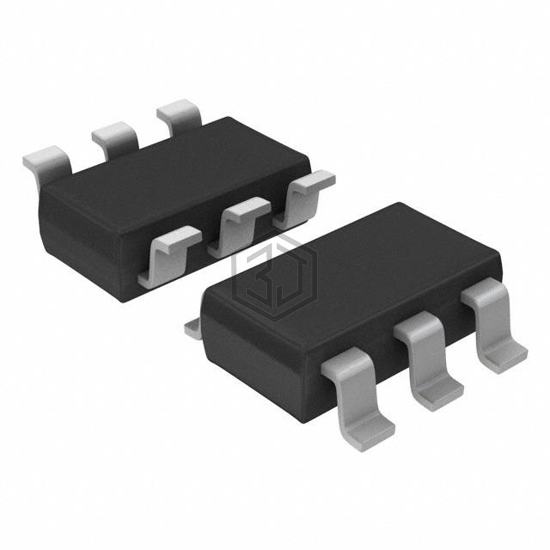

IC OFFLINE SWITCH FLYBACK 6TSOP
NCP1253ASN100T1G is a PMIC - AC DC Converters, Offline Switchers manufactured by onsemi. IC OFFLINE SWITCH FLYBACK 6TSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 8.8V ~ 28V, package / case SOT-23-6 Thin, TSOT-23-6.
In Stock: 21,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 18 V |
| Voltage - Supply (Vcc/Vdd) | 8.8V ~ 28V |
| Duty Cycle | 80% |
| Frequency - Switching | 100kHz |
| Power (Watts) | - |
| Fault Protection | Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | 6-TSOP |
| Mounting Type | Surface Mount |
NCP1253ASN100T1G is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNK586DG-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SO | 100% | View |
| LNK564DN-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SO | 100% | View |
| LNK585DG | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SO | 100% | View |
| TOP223G-TL | Power Integrations | IC OFFLINE SWITCH MULT TOP 8SMD | 100% | View |
| LNK625DG | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SO | 100% | View |
| NCP1568B13ADBR2G | onsemi | IC OFFLINE SW FLYBACK 16TSSOP | 96% | View |
Submit your RFQ for NCP1253ASN100T1G and get a quote within 24 hours.
