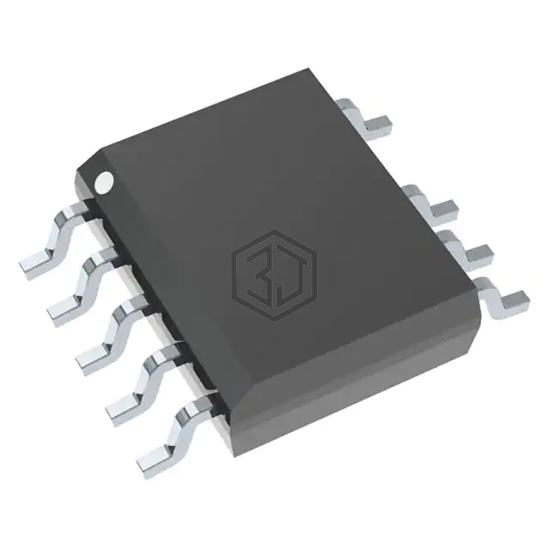

IC OFFLINE SWITCH FLYBACK 9SOIC
NCP1249AD65R2G is a PMIC - AC DC Converters, Offline Switchers manufactured by onsemi. IC OFFLINE SWITCH FLYBACK 9SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 10V ~ 30V, package / case 10-SOP (0.154", 3.90mm Width), 9 Leads.
In Stock: 19,177
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 18 V |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 30V |
| Duty Cycle | 80% |
| Frequency - Switching | 65kHz |
| Power (Watts) | - |
| Fault Protection | Over Load, Over Power, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package / Case | 10-SOP (0.154", 3.90mm Width), 9 Leads |
| Supplier Device Package | 9-SOIC |
| Mounting Type | Surface Mount |
NCP1249AD65R2G is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCP1251BSN65T1G | onsemi | IC OFFLINE SWITCH FLYBACK 6TSOP | 98% | View |
| NCP1251CSN65T1G | onsemi | NCP1251 OVP AUTOREC 65KHZ | 98% | View |
| NCP1256BSN65T1G | onsemi | IC OFFLINE SWITCH FLYBACK 6TSOP | 98% | View |
| AP3125AKTR-G1 | Diodes Incorporated | IC OFFLINE SWITCH FLYBACK SOT26 | 98% | View |
| AP3125B1KTR-G1 | Diodes Incorporated | IC OFFLINE SWITCH FLYBACK SOT26 | 98% | View |
| NCP12400CAHAB0DR2G | onsemi | IC OFFLINE SWITCH FLYBACK 7SOIC | 93% | View |
