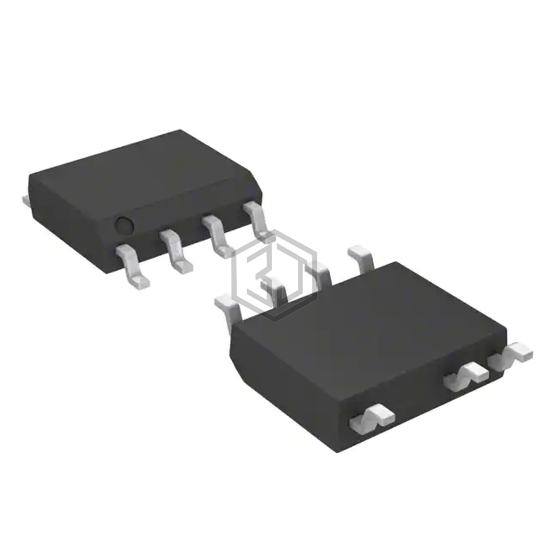

IC OFFLINE SWITCH FLYBACK 7SOIC
NCP1236BD65R2G is a PMIC - AC DC Converters, Offline Switchers manufactured by onsemi. IC OFFLINE SWITCH FLYBACK 7SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 9.5V ~ 28V, package / case 8-SOIC (0.154", 3.90mm Width), 7 Leads.
In Stock: 9,111
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 12 V |
| Voltage - Supply (Vcc/Vdd) | 9.5V ~ 28V |
| Duty Cycle | 80% |
| Frequency - Switching | 65kHz |
| Power (Watts) | - |
| Fault Protection | Over Load, Over Power, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | 7-SOIC |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCP1236DD65R2G | onsemi | IC OFFLINE SWITCH FLYBACK 7SOIC | 100% | View |
| NCP1247CD065R2G | onsemi | IC OFFLINE SWITCH FLYBACK 7SOIC | 99% | View |
| NCP12400CBAAB0DR2G | onsemi | IC OFFLINE SWITCH FLYBACK 7SOIC | 99% | View |
| AP3125CMKTR-G1 | Diodes Incorporated | IC OFFLINE SWITCH FLYBACK SOT26 | 95% | View |
| TEA1833TS/1H | NXP USA Inc. | IC OFFLINE SWITCH FLYBACK SC74 | 90% | View |
| TEA1833LTS/1H | NXP USA Inc. | IC OFFLINE SWITCH FLYBACK SC74 | 90% | View |
Submit your RFQ for NCP1236BD65R2G and get a quote within 24 hours.
