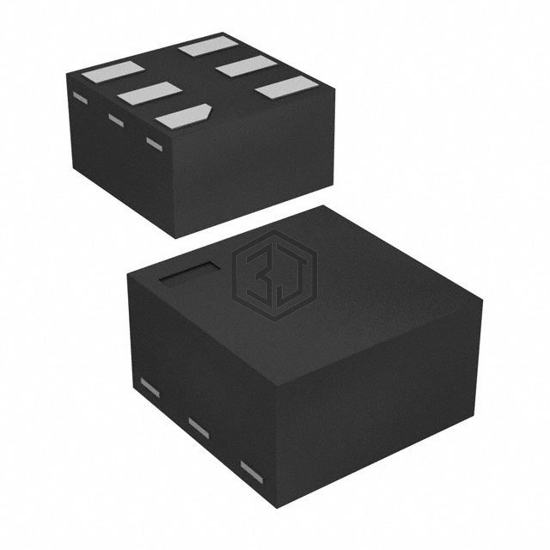

IC INVERTER 1CH 1-INP 6MICROPAK2
NC7SZ14FHX is a Logic - Gates and Inverters manufactured by onsemi. IC INVERTER 1CH 1-INP 6MICROPAK2. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.65V ~ 5.5V, package / case 6-UFDFN.
In Stock: 257,156
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 32mA, 32mA |
| Logic Level - Low | 0.2V ~ 1.2V |
| Logic Level - High | 1.4V ~ 3.6V |
| Max Propagation Delay @ V, Max CL | 5.9ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-MicroPak2™ |
| Package / Case | 6-UFDFN |
NC7SZ14FHX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NC7SZ14M5 | Fairchild Semiconductor | IC INVERTER 1CH 1-INP SOT23-5 | 85% | View |
| SN74LVC1G14DPWR | Texas Instruments | IC INVERT SCHMITT 1CH 1IN 5X2SON | 82% | View |
| 74LVC1G14QW5-7 | Diodes Incorporated | IC INVERT 1CH 1-INP SOT25 TR/3K | 81% | View |
| SN74LVC1G04DRLR | Texas Instruments | IC INVERTER 1CH 1-INP SOT5 | 74% | View |
| 74LVCE1G04SE-7 | Diodes Incorporated | IC INVERTER 1CH 1-INP SOT353 | 71% | View |
| 1P2GU04QDRYRQ1 | Texas Instruments | IC LOGIC BUFFER/DRIVER | 67% | View |
Submit your RFQ for NC7SZ14FHX and get a quote within 24 hours.
