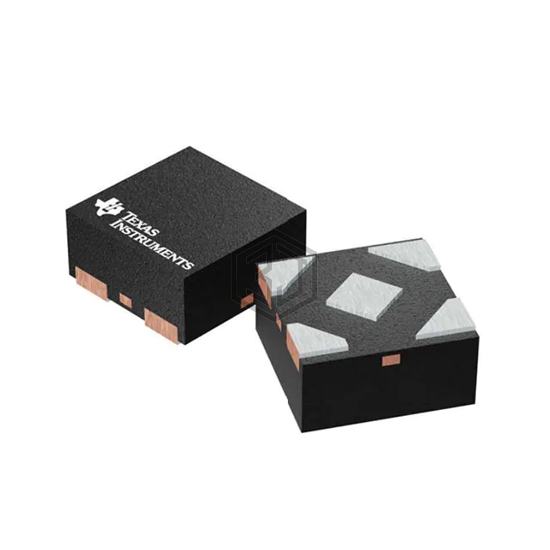

IC INVERT SCHMITT 1CH 1IN 5X2SON
SN74LVC1G14DPWR is a Logic - Gates and Inverters manufactured by Texas Instruments. IC INVERT SCHMITT 1CH 1IN 5X2SON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.65V ~ 5.5V, package / case 5-XFDFN Exposed Pad.
In Stock: 2,013
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 32mA, 32mA |
| Logic Level - Low | 0.39V ~ 1.87V |
| Logic Level - High | 1.16V ~ 3.33V |
| Max Propagation Delay @ V, Max CL | 5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 5-X2SON (0.8x0.8) |
| Package / Case | 5-XFDFN Exposed Pad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74LVC1G04DRLR | Texas Instruments | IC INVERTER 1CH 1-INP SOT5 | 89% | View |
| 74LVCE1G04SE-7 | Diodes Incorporated | IC INVERTER 1CH 1-INP SOT353 | 87% | View |
| 74LVC1G14QW5-7 | Diodes Incorporated | IC INVERT 1CH 1-INP SOT25 TR/3K | 87% | View |
| 1P2GU04QDRYRQ1 | Texas Instruments | IC LOGIC BUFFER/DRIVER | 82% | View |
| 74LVC2G04FX4-7 | Diodes Incorporated | IC INVERTER 2CH 2-INP DFN1409-6 | 81% | View |
| NC7SZ14M5 | Fairchild Semiconductor | IC INVERTER 1CH 1-INP SOT23-5 | 80% | View |
Submit your RFQ for SN74LVC1G14DPWR and get a quote within 24 hours.
