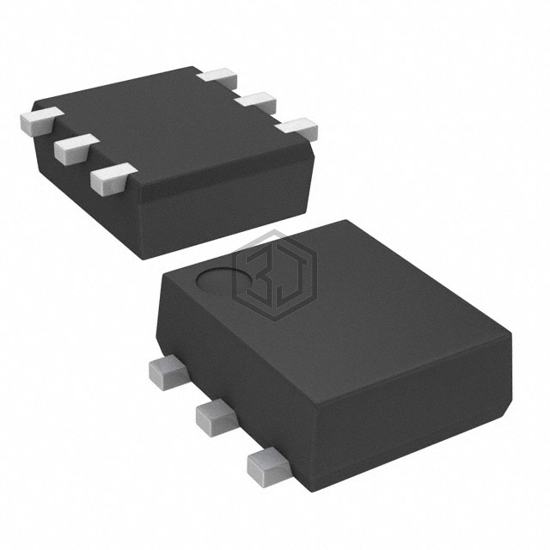

MOSFET N/P-CH 20V 2A/1.5A MCPH6
MCH6660-TL-H is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET N/P-CH 20V 2A/1.5A MCPH6. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 6-SMD, Flat Leads, power - max 800mW.
In Stock: 1,675,561
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N and P-Channel |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 2A, 1.5A |
| Rds On (Max) @ Id, Vgs | 136mOhm @ 1A, 4.5V |
| Vgs(th) (Max) @ Id | - |
| Gate Charge (Qg) (Max) @ Vgs | 1.8nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 128pF @ 10V |
| Power - Max | 800mW |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, Flat Leads |
| Supplier Device Package | 6-MCPH |
Submit your RFQ for MCH6660-TL-H and get a quote within 24 hours.
