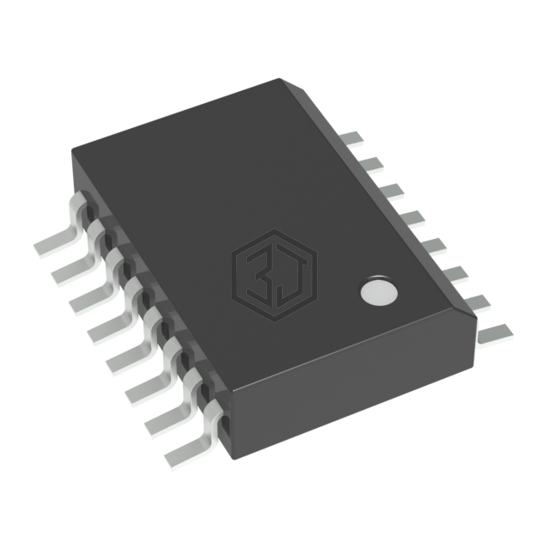

IC OFFLINE SW HALF-BRDG 16SOIC
MC34025DWR2G is a PMIC - AC DC Converters, Offline Switchers manufactured by onsemi. IC OFFLINE SW HALF-BRDG 16SOIC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), voltage - supply (vcc/vdd) 8.4V ~ 30V, package / case 16-SOIC (0.295", 7.50mm Width).
In Stock: 8,112
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Half-Bridge |
| Voltage - Start Up | 9.2 V |
| Voltage - Supply (Vcc/Vdd) | 8.4V ~ 30V |
| Duty Cycle | 45% |
| Frequency - Switching | 1MHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting |
| Control Features | Frequency Control, Soft Start |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Mounting Type | Surface Mount |
MC34025DWR2G is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UC3823DW | Texas Instruments | IC OFFLINE SW MULT TOP 16SOIC | 100% | View |
| UCC2809PTR-2 | Texas Instruments | IC OFFLINE SW MULT TOP 8VSSOP | 98% | View |
| UCC2809PW-2 | Texas Instruments | IC OFFLINE SW MULT TOP 8TSSOP | 98% | View |
| UCC2809D-1 | Texas Instruments | IC OFFLINE SWITCH MULT TOP 8SOIC | 98% | View |
| UCC3810TD2 | Texas Instruments | IC OFFLINE SWITCH DIE | 97% | View |
| UCC3808AD-1 | Texas Instruments | IC OFFLINE SWITCH MULT TOP 8SOIC | 96% | View |
Submit your RFQ for MC34025DWR2G and get a quote within 24 hours.
