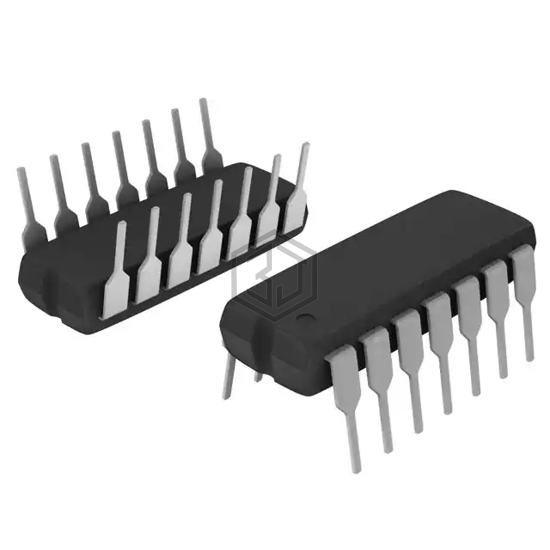

IC GATE NAND 4CH 2IN 14DIP
MC14093BCPG is a Logic - Gates and Inverters manufactured by onsemi. IC GATE NAND 4CH 2IN 14DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply 3V ~ 18V, package / case 14-DIP (0.300", 7.62mm).
In Stock: 4,276
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger |
| Voltage - Supply | 3V ~ 18V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 8.8mA, 8.8mA |
| Logic Level - Low | 0.9V ~ 4V |
| Logic Level - High | 3.6V ~ 10.8V |
| Max Propagation Delay @ V, Max CL | 80ns @ 15V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-PDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
MC14093BCPG is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NTE4093B | NTE Electronics, Inc | IC GATE NAND 4CH 2IN 14DIP | 100% | View |
| MC14011BCPG | onsemi | IC GATE NAND 4CH 2-INP 14DIP | 97% | View |
| NTE4011B | NTE Electronics, Inc | IC-CMOS NAND GATE 14-LEAD DIP | 95% | View |
| CD4011BD3 | Harris Corporation | CMOS QUAD 2-INPUT NAND GATE | 81% | View |
| CD4011BFX | Harris Corporation | CMOS QUAD 2-INPUT NAND GATE | 81% | View |
| CD4093BD | Harris Corporation | CMOS QUAD 2-INPUT NAND GATE | 72% | View |
Submit your RFQ for MC14093BCPG and get a quote within 24 hours.
