CMOS QUAD 2-INPUT NAND GATE

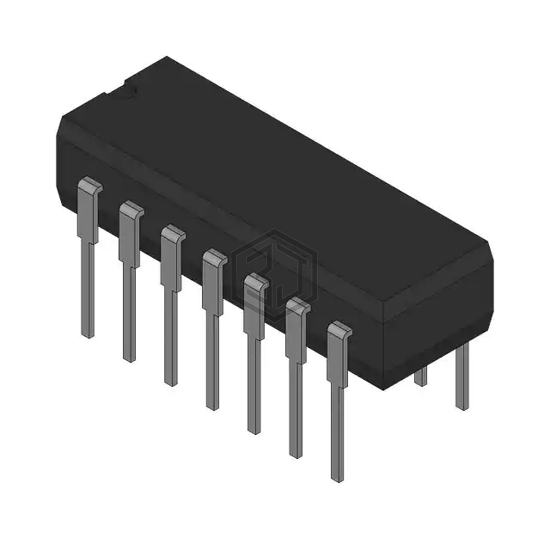

CD4093BD is a Logic - Gates and Inverters manufactured by Harris Corporation. CMOS QUAD 2-INPUT NAND GATE. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply 3V ~ 18V, package / case 14-CDIP (0.300", 7.62mm).
In Stock: 2,865
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger |
| Voltage - Supply | 3V ~ 18V |
| Current - Quiescent (Max) | 20 µA |
| Current - Output High, Low | 6.8mA, 6.8mA |
| Logic Level - Low | 2.8V ~ 9.6V |
| Logic Level - High | 3.6V ~ 12.7V |
| Max Propagation Delay @ V, Max CL | 130ns @ 15V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-CDIP |
| Package / Case | 14-CDIP (0.300", 7.62mm) |
