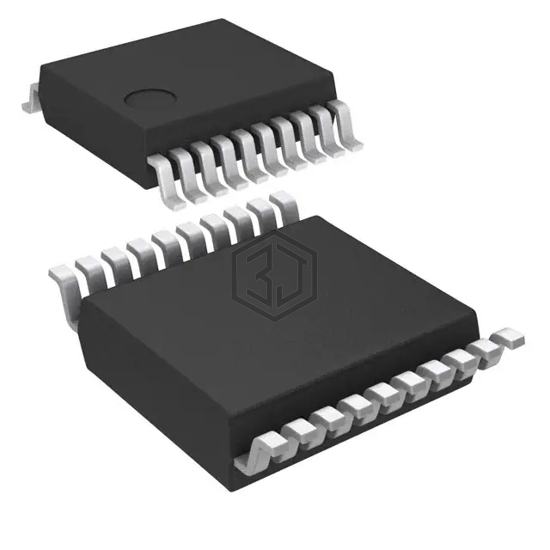

IC MOTOR DRIVER 6V-15V 20SSOP
LV8804FV-TLM-H is a PMIC - Motor Drivers, Controllers manufactured by onsemi. IC MOTOR DRIVER 6V-15V 20SSOP. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 95°C (TA), voltage - supply 6V ~ 15V, package / case 20-LFSOP (0.173", 4.40mm Width).
In Stock: 3,132
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (3) |
| Interface | On/Off |
| Technology | Bi-CMOS |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 1.2A |
| Voltage - Supply | 6V ~ 15V |
| Voltage - Load | 6V ~ 15V |
| Operating Temperature | -30°C ~ 95°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-LFSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-SSOPJ |
LV8804FV-TLM-H is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LV8804V-MPB-H | Sanyo | PC AND SERVER FAN MOTOR DRIVER | 100% | View |
| LV8805V-MPB-H | onsemi | IC MOTOR DRIVER 6V-15V 36SSOPJ | 100% | View |
| AMIS30522C5222RG | onsemi | IC MTRDRV BIPLR 4.75-5.25V 32QFP | 100% | View |
| NCV70521MN003R2G | onsemi | IC MTRDRV BIPLR 4.75-5.25V 32QFP | 96% | View |
| NCV70522DQ004G | onsemi | IC MOTOR DRIVER BIPOLAR 36SSOP | 96% | View |
| MP6508GF-Z | Monolithic Power Systems Inc. | IC MTR DRV BIPLR 2.7-18V 16TSSOP | 80% | View |
Submit your RFQ for LV8804FV-TLM-H and get a quote within 24 hours.
