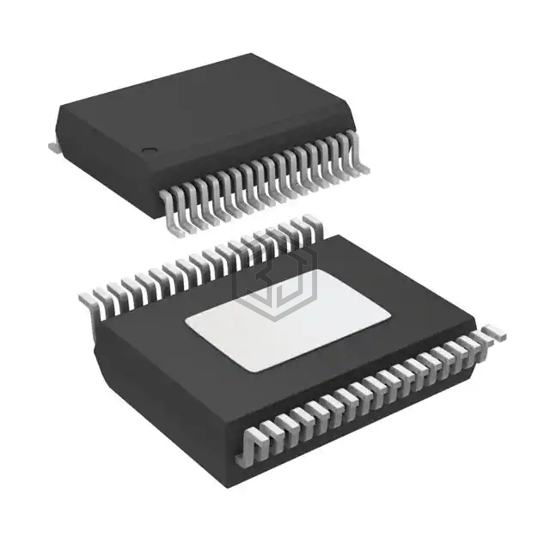

IC MOTOR DRIVER BIPOLAR 36SSOP
NCV70522DQ004G is a PMIC - Motor Drivers, Controllers manufactured by onsemi. IC MOTOR DRIVER BIPOLAR 36SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 172°C (TJ), voltage - supply 4.75V ~ 5.25V, package / case 36-BFSOP (0.295", 7.50mm Width) Exposed Pad.
In Stock: 2,853
| Attribute | Value |
|---|---|
| Product Status | Active |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | SPI |
| Technology | Power MOSFET |
| Step Resolution | 1 ~ 1/32 |
| Applications | General Purpose |
| Current - Output | 1.2A |
| Voltage - Supply | 4.75V ~ 5.25V |
| Voltage - Load | 6V ~ 30V |
| Operating Temperature | -40°C ~ 172°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 36-BFSOP (0.295", 7.50mm Width) Exposed Pad |
| Supplier Device Package | 36-SSOP-EP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCV70521MN003R2G | onsemi | IC MTRDRV BIPLR 4.75-5.25V 32QFP | 100% | View |
| AMIS30521C5212G | onsemi | IC MTRDRV BIPLR 4.75-5.25V 32QFP | 100% | View |
| NCV70522DQ004R2G | onsemi | IC MOTOR DRIVER BIPOLAR 36SSOP | 100% | View |
| AMIS30522C5222G | onsemi | IC MTRDRV BIPLR 4.75-5.25V 32QFP | 100% | View |
| AMIS30522C5222RG | onsemi | IC MTRDRV BIPLR 4.75-5.25V 32QFP | 100% | View |
| AMIS30521C5212RG | onsemi | IC MTRDRV BIPLR 4.75-5.25V 32QFP | 100% | View |
Submit your RFQ for NCV70522DQ004G and get a quote within 24 hours.
