IC BRIDGE DRIVER PAR 10SOIC

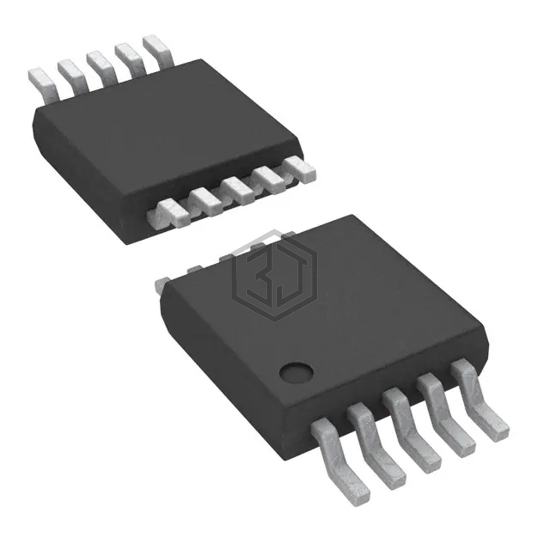

LV8548MCZ-AH is a PMIC - Full, Half-Bridge Drivers manufactured by onsemi. IC BRIDGE DRIVER PAR 10SOIC. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C (TA), voltage - supply 4V ~ 16V, package / case 10-SOP (0.154", 3.90mm Width).
In Stock: 3,704
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge (4) |
| Applications | DC Motors, General Purpose, Stepper Motors |
| Interface | Logic |
| Load Type | Inductive |
| Technology | DMOS |
| Rds On (Typ) | 1Ohm |
| Current - Output / Channel | 1A |
| Current - Peak Output | - |
| Voltage - Supply | 4V ~ 16V |
| Voltage - Load | 4V ~ 16V |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Features | - |
| Fault Protection | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-SOP (0.154", 3.90mm Width) |
| Supplier Device Package | 10-SOIC |
LV8548MCZ-AH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| A3909GLNTR-T | Allegro MicroSystems | IC MOTOR DRIVER PAR 10SSOP | 100% | View |
| A3909GLYTR-T | Allegro MicroSystems | IC MOTOR DRIVER PAR 10MSOP | 100% | View |
| LV8548MC-BH | onsemi | IC MOTOR DRIVER PAR 10SOIC | 100% | View |
| LV8548MC-AH | onsemi | IC MOTOR DRIVER PAR MFP10S | 100% | View |
| BA5955FP-E2 | Rohm Semiconductor | IC HALF BRIDGE DRIVER 1A 25HSOP | 90% | View |
| LB1836M-TLM-E | onsemi | H-BRIDGE MOTOR DRIVER | 77% | View |
Submit your RFQ for LV8548MCZ-AH and get a quote within 24 hours.
