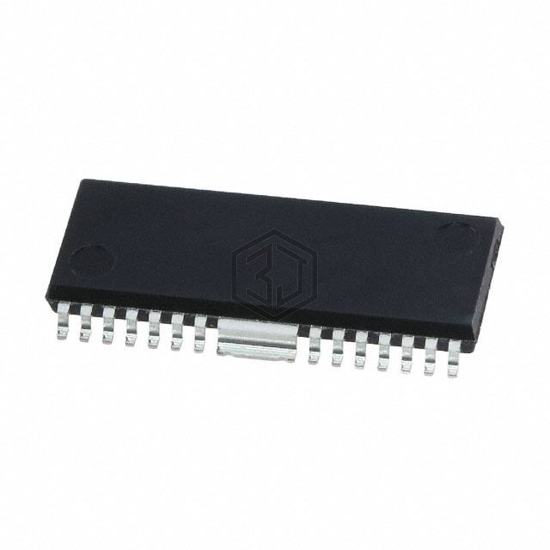

IC MOTOR DRIVER 4.5V-18V 28HSOP
LB11685VH-TLM-H is a PMIC - Motor Drivers, Controllers manufactured by onsemi. IC MOTOR DRIVER 4.5V-18V 28HSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 18V, package / case 28-LSOP (0.220", 5.60mm Width) + 2 Heat Tabs.
In Stock: 218,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (3) |
| Interface | Parallel |
| Technology | Bipolar |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 1.2A |
| Voltage - Supply | 4.5V ~ 18V |
| Voltage - Load | 4.5V ~ 18V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 28-LSOP (0.220", 5.60mm Width) + 2 Heat Tabs |
| Supplier Device Package | 28-HSOP |
LB11685VH-TLM-H is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LB11685AV-MPB-H | onsemi | IC MOTOR DRIVER 4.5V-18V 24SSOPJ | 100% | View |
| NCV70521MN003R2G | onsemi | IC MTRDRV BIPLR 4.75-5.25V 32QFP | 94% | View |
| AMIS30521C5212G | onsemi | IC MTRDRV BIPLR 4.75-5.25V 32QFP | 94% | View |
| NCV70522DQ004G | onsemi | IC MOTOR DRIVER BIPOLAR 36SSOP | 94% | View |
| L9997ND013TR | STMicroelectronics | IC MOTOR DRIVER 7V-16.5V 20SO | 84% | View |
| E-L9935013TR | STMicroelectronics | IC MTR DRV BIPOLAR 8-24V 20PWRSO | 80% | View |
Submit your RFQ for LB11685VH-TLM-H and get a quote within 24 hours.
