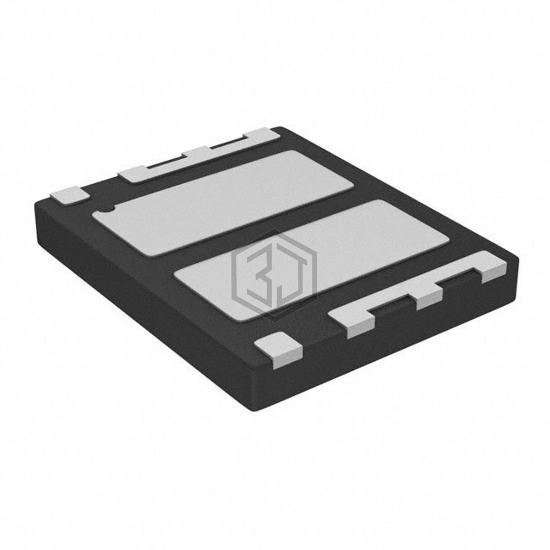

MOSFET N/P-CH 150V 6.2A/1A PWR56
FDMS8095AC is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET N/P-CH 150V 6.2A/1A PWR56. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 2.3W.
In Stock: 12,304
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N and P-Channel |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 150V |
| Current - Continuous Drain (Id) @ 25°C | 6.2A, 1A |
| Rds On (Max) @ Id, Vgs | 30mOhm @ 6.2A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 30nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 2020pF @ 75V |
| Power - Max | 2.3W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerWDFN |
| Supplier Device Package | 8-MLP (5x6), Power56 |
Submit your RFQ for FDMS8095AC and get a quote within 24 hours.
