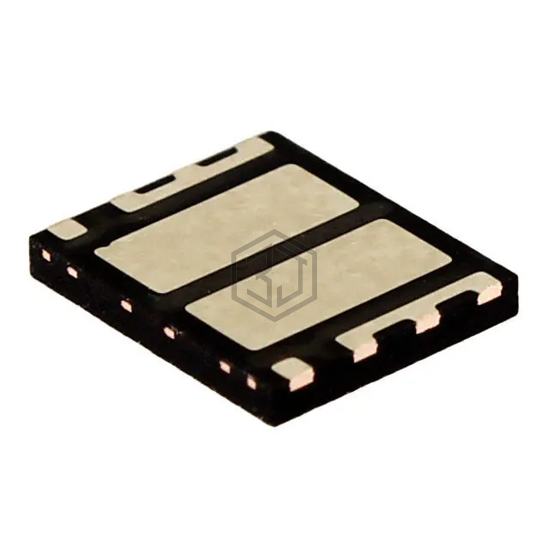

MOSFET 2N-CH 100V 10A PWR56
FDMS8090 is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 100V 10A PWR56. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 2.2W.
In Stock: 292
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 100V |
| Current - Continuous Drain (Id) @ 25°C | 10A |
| Rds On (Max) @ Id, Vgs | 13mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 27nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1800pF @ 50V |
| Power - Max | 2.2W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerWDFN |
| Supplier Device Package | 8-MLP (5x6), Power56 |
Submit your RFQ for FDMS8090 and get a quote within 24 hours.
