MOSFET 2N-CH 30V 13A/18A POWER56

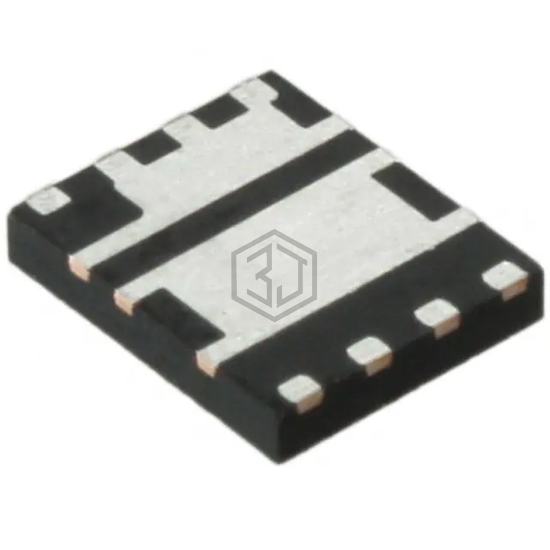

FDMS3669S is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 30V 13A/18A POWER56. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN, power - max 1W.
In Stock: 2,027
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) Asymmetrical |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 13A, 18A |
| Rds On (Max) @ Id, Vgs | 10mOhm @ 13A, 10V |
| Vgs(th) (Max) @ Id | 2.7V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 24nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1605pF @ 15V |
| Power - Max | 1W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerTDFN |
| Supplier Device Package | Power56 |
Submit your RFQ for FDMS3669S and get a quote within 24 hours.
