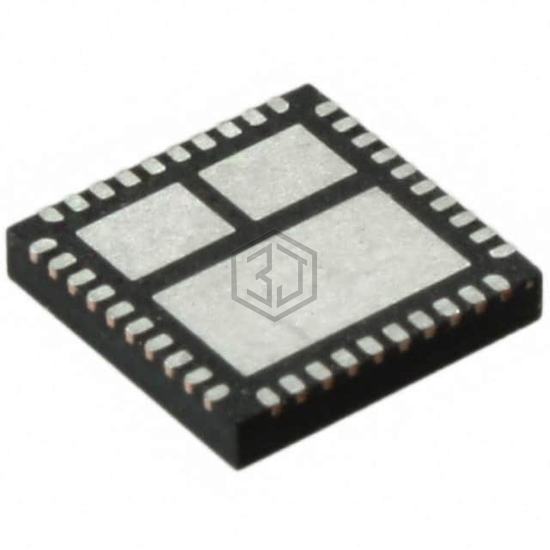

MODULE DRMOS 55A 40-PQFN
FDMF6824B is a PMIC - Full, Half-Bridge Drivers manufactured by onsemi. MODULE DRMOS 55A 40-PQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 5.5V, package / case 40-PowerTFQFN.
In Stock: 7,474
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge |
| Applications | Synchronous Buck Converters |
| Interface | PWM |
| Load Type | Inductive |
| Technology | DrMOS |
| Rds On (Typ) | 1Ohm LS, 1Ohm HS |
| Current - Output / Channel | 55A |
| Current - Peak Output | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Load | 3V ~ 16V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit, Status Flag |
| Fault Protection | Over Temperature, Shoot-Through, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 40-PowerTFQFN |
| Supplier Device Package | 40-PQFN (6x6) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| FDMF6820B | Fairchild Semiconductor | HALF BRIDGE BASED MOSFET DRIVER | 100% | View |
| FDMF6823A | onsemi | MODULE DRMOS 60A 40-PQFN | 97% | View |
| FDMF6824A | onsemi | MOD DRMOS HIGH PERF 40QFN | 97% | View |
| FDMF6823B | Fairchild Semiconductor | HALF BRIDGE BASED MOSFET DRIVER, | 93% | View |
| SIC789ACD-T1-GE3 | Vishay Siliconix | IC BUCK ADJ 60A MLP66-40L | 89% | View |
| CSD95372AQ5M | Texas Instruments | IC SYNC BUCK NEXFET 12SON | 89% | View |
Submit your RFQ for FDMF6824B and get a quote within 24 hours.
