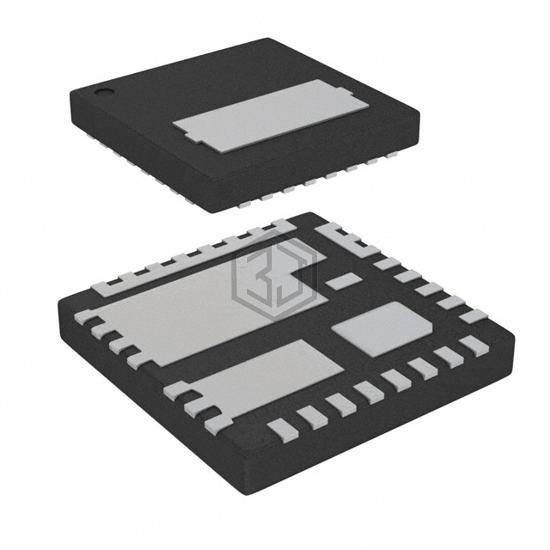

IC SPS HALF-BRIDGE DRVR 31PQFN
FDMF5823DC is a PMIC - Full, Half-Bridge Drivers manufactured by onsemi. IC SPS HALF-BRIDGE DRVR 31PQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.5V ~ 5.5V, package / case 31-PowerWFQFN.
In Stock: 2,311
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge |
| Applications | Synchronous Buck Converters |
| Interface | PWM |
| Load Type | Inductive |
| Technology | UMOS |
| Rds On (Typ) | 470mOhm LS, 680mOhm HS |
| Current - Output / Channel | 55A |
| Current - Peak Output | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Load | 4.5V ~ 16V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Features | Bootstrap Circuit, Latch Function, Status Flag |
| Fault Protection | Over Temperature, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 31-PowerWFQFN |
| Supplier Device Package | 31-PQFN (5x5) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| FDMF6823B | Fairchild Semiconductor | HALF BRIDGE BASED MOSFET DRIVER, | 100% | View |
| FDMF5822DC | Fairchild Semiconductor | HALF BRIDGE BASED MOSFET DRIVER | 100% | View |
| MP86884DQKT-Z | Monolithic Power Systems Inc. | 14V,55A INTELLI-PHASE, 5V PWM LO | 100% | View |
| MP86884DQKTE-Z | Monolithic Power Systems Inc. | 14V,55A INTELLI-PHASE,3.3V PWM L | 100% | View |
| MP86884DQKT-P | Monolithic Power Systems Inc. | 14V,55A INTELLI-PHASE, 5V PWM LO | 100% | View |
| MP86884DQKTE-P | Monolithic Power Systems Inc. | 14V,55A INTELLI-PHASE,3.3V PWM L | 100% | View |
Submit your RFQ for FDMF5823DC and get a quote within 24 hours.
