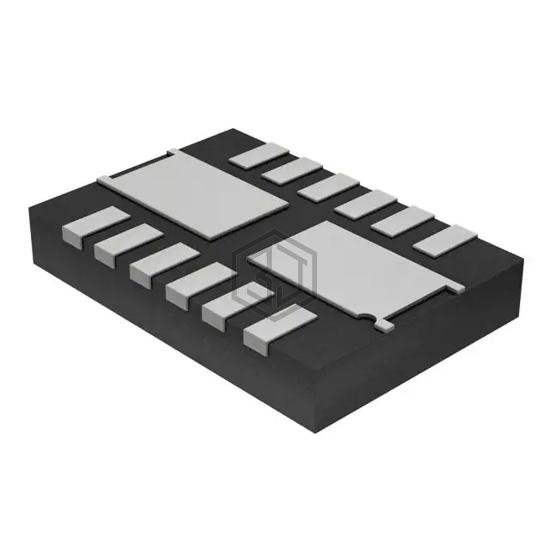

MOSFET 2N-CH 80V 11A 12POWER
FDMD8280 is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 80V 11A 12POWER. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 12-PowerWDFN, power - max 1W.
In Stock: 4,830
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 80V |
| Current - Continuous Drain (Id) @ 25°C | 11A |
| Rds On (Max) @ Id, Vgs | 8.2mOhm @ 11A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 44nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 3050pF @ 40V |
| Power - Max | 1W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 12-PowerWDFN |
| Supplier Device Package | 12-Power3.3x5 |
Submit your RFQ for FDMD8280 and get a quote within 24 hours.
