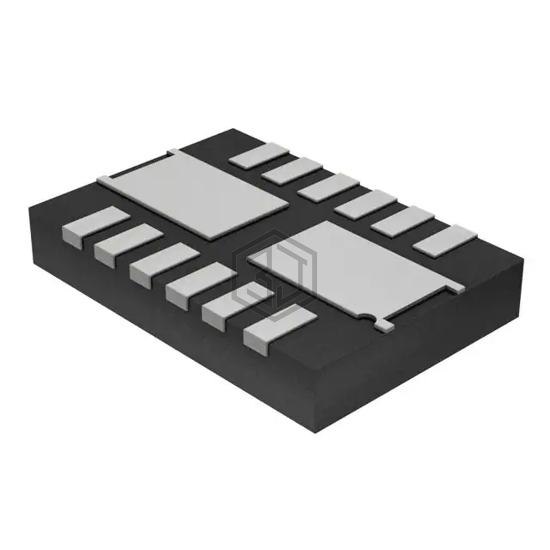

MOSFET 2N-CH 60V 15A 12POWER
FDMD8260LET60 is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 60V 15A 12POWER. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 12-PowerWDFN, power - max 1.1W.
In Stock: 3,522
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 15A |
| Rds On (Max) @ Id, Vgs | 5.8mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 68nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 5245pF @ 30V |
| Power - Max | 1.1W |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 12-PowerWDFN |
| Supplier Device Package | 12-Power3.3x5 |
Submit your RFQ for FDMD8260LET60 and get a quote within 24 hours.
