MOSFET N/P-CH 150V

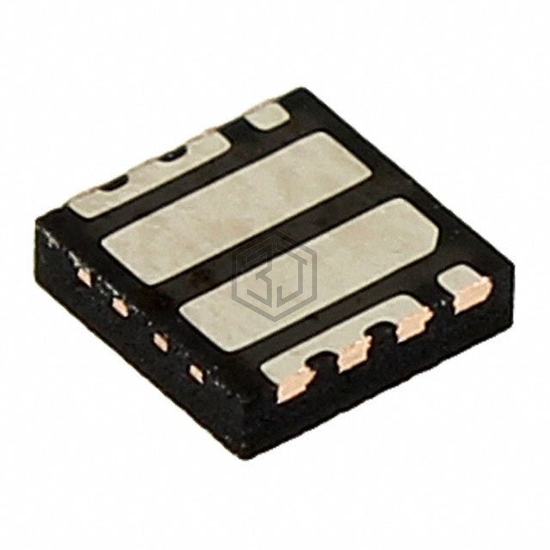

FDMC8097AC is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET N/P-CH 150V. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 1.9W.
In Stock: 62,981
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N and P-Channel |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 150V |
| Current - Continuous Drain (Id) @ 25°C | 2.4A (Ta), 900mA (Tc) |
| Rds On (Max) @ Id, Vgs | 155mOhm @ 2.4A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 6.2nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 395pF @ 75V |
| Power - Max | 1.9W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerWDFN |
| Supplier Device Package | 8-Power33 (3x3) |
Submit your RFQ for FDMC8097AC and get a quote within 24 hours.
