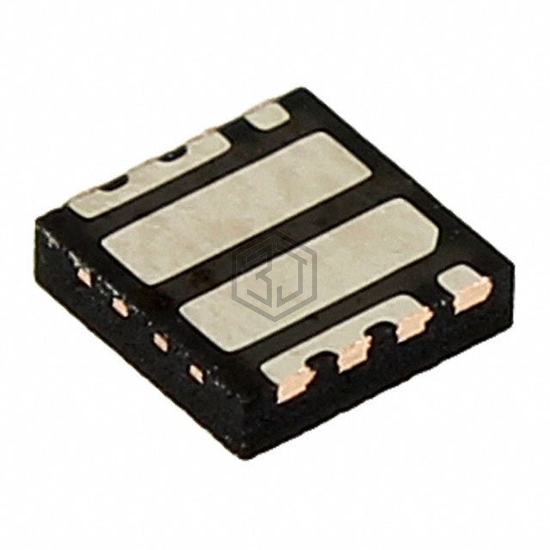

MOSFET 2N-CH 40V 12A 8POWER33
FDMC8030 is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 40V 12A 8POWER33. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 800mW.
In Stock: 1,252
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 12A |
| Rds On (Max) @ Id, Vgs | 10mOhm @ 12A, 10V |
| Vgs(th) (Max) @ Id | 2.8V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 30nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1975pF @ 20V |
| Power - Max | 800mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerWDFN |
| Supplier Device Package | 8-Power33 (3x3) |
Submit your RFQ for FDMC8030 and get a quote within 24 hours.
