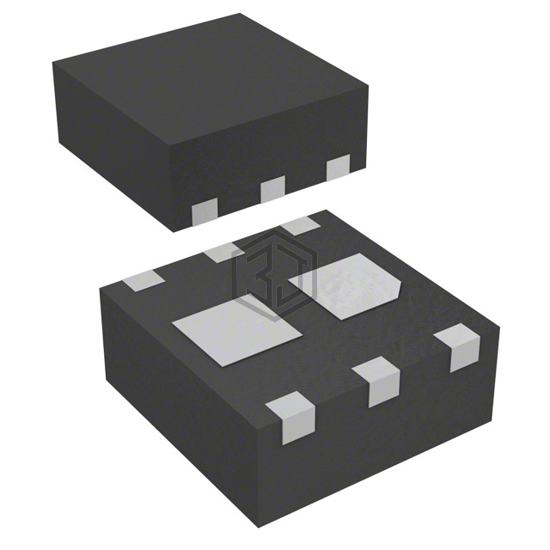

MOSFET 2N-CH 20V 5A 6MICROFET
FDMA1024NZ is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 20V 5A 6MICROFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-VDFN Exposed Pad, power - max 700mW.
In Stock: 5,929
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 5A |
| Rds On (Max) @ Id, Vgs | 54mOhm @ 5A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 7.3nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 500pF @ 10V |
| Power - Max | 700mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-VDFN Exposed Pad |
| Supplier Device Package | 6-MicroFET (2x2) |
Submit your RFQ for FDMA1024NZ and get a quote within 24 hours.
