IC PWR SWTCH N-CHAN 1:1 TO252-4L

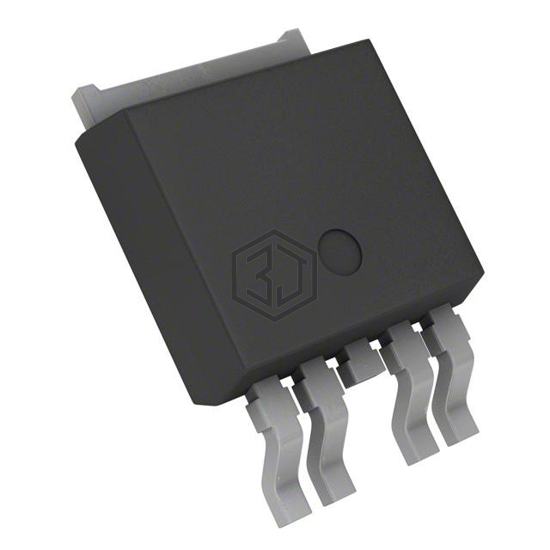

FDDS100H06-F085 is a PMIC - Power Distribution Switches, Load Drivers manufactured by onsemi. IC PWR SWTCH N-CHAN 1:1 TO252-4L. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case TO-252-5, DPak (4 Leads + Tab), TO-252AD.
In Stock: 7,466
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 5.5V ~ 37V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 2.8A |
| Rds On (Typ) | 80mOhm |
| Input Type | Non-Inverting |
| Features | Auto Restart |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-252 (DPAK) |
| Package / Case | TO-252-5, DPak (4 Leads + Tab), TO-252AD |
FDDS100H06-F085 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| FDDS100H06 | Fairchild Semiconductor | N CHANNEL , SMART HIGH SIDE SWIT | 100% | View |
| BSP772TXUMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 PDSO-8 | 95% | View |
| BTS70802EPZXUMA1 | Infineon Technologies | PROFET PG-TSDSO-14 | 83% | View |
| ITS4040DEPDXUMA1 | Infineon Technologies | IC PWR SWTCH N-CHAN 1:1 TSDSO-14 | 78% | View |
| MC16XSD200FK | Freescale Semiconductor | HIGH-SIDE SWITCH, 36V, DUAL 16MO | 78% | View |
| BTS710404ESEXUMA1 | Infineon Technologies | IC PWR DRVR N-CHAN 1:2 TSDSO-24 | 71% | View |
