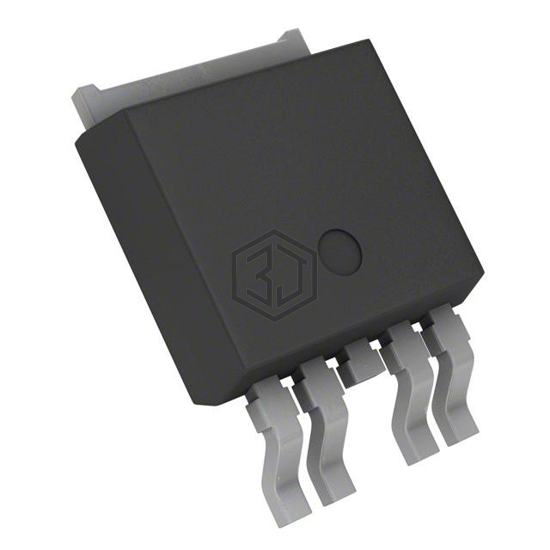

MOSFET N/P-CH 80V 4.3/2.8A TO252
FDD3510H is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET N/P-CH 80V 4.3/2.8A TO252. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-252-5, DPak (4 Leads + Tab), TO-252AD, power - max 1.3W.
In Stock: 2,911
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N and P-Channel, Common Drain |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 80V |
| Current - Continuous Drain (Id) @ 25°C | 4.3A, 2.8A |
| Rds On (Max) @ Id, Vgs | 80mOhm @ 4.3A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 18nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 800pF @ 40V |
| Power - Max | 1.3W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-5, DPak (4 Leads + Tab), TO-252AD |
| Supplier Device Package | TO-252 (DPAK) |
Submit your RFQ for FDD3510H and get a quote within 24 hours.
