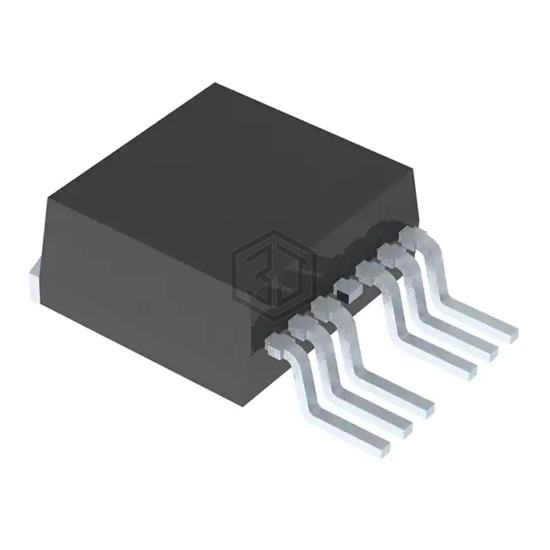

IC PWR SWITCH N-CHAN 1:1 TO263-7
FDBS09H04A-F085A is a PMIC - Power Distribution Switches, Load Drivers manufactured by onsemi. IC PWR SWITCH N-CHAN 1:1 TO263-7. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case TO-263-7, D²Pak (6 Leads + Tab).
In Stock: 6,890
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 5.5V ~ 38V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 12A |
| Rds On (Typ) | 5.5mOhm |
| Input Type | Non-Inverting |
| Features | - |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-263-7 |
| Package / Case | TO-263-7, D²Pak (6 Leads + Tab) |
FDBS09H04A-F085A is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AUIPS6121R | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 TO252-5 | 99% | View |
| BTS70061EPPXUMA1 | Infineon Technologies | IC PWR SWTCH N-CHAN 1:1 TSDSO-14 | 97% | View |
| BTS70061EPZXUMA1 | Infineon Technologies | PROFET PG-TSDSO-14 | 97% | View |
| VN5050AJTR-E | STMicroelectronics | IC PWR DRVR N-CHAN 1:1 PWRSSO12 | 96% | View |
| VND5050JTR-E | STMicroelectronics | IC PWR DRVR N-CHAN 1:1 PWRSSO12 | 84% | View |
| VND5050AKTR-E | STMicroelectronics | IC PWR DRVR N-CHAN 1:1 PWRSSO24 | 84% | View |
Submit your RFQ for FDBS09H04A-F085A and get a quote within 24 hours.
