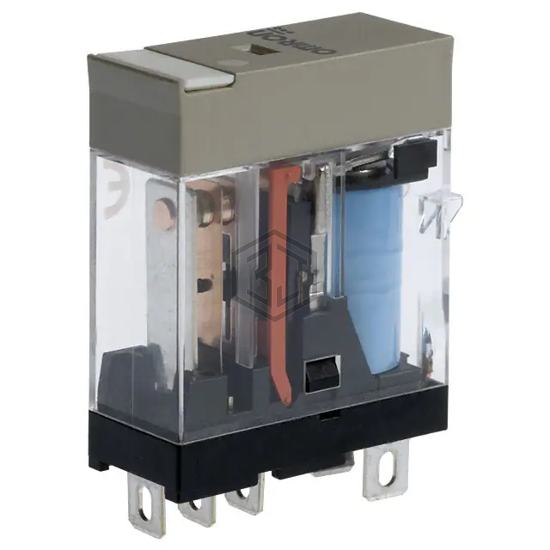

RELAY GEN PURPOSE SPDT 10A 24V
G2R-1-SD DC24(S) is a Power Relays, Over 2 Amps manufactured by Omron Automation and Safety. RELAY GEN PURPOSE SPDT 10A 24V. Key specifications: mounting type Socketable, operating temperature -40°C ~ 70°C, termination style Plug In, Quick Connect - 0.187" (4.7mm), coil voltage 24VDC.
In Stock: 4,048
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Socketable |
| Coil Voltage | 24VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 440VAC, 125VDC - Max |
| Coil Current | 21.6 mA |
| Coil Type | Non Latching |
| Features | Diode |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 3.6 VDC |
| Operate Time | 15 ms |
| Release Time | 20 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | - |
| Relay Type | General Purpose |
