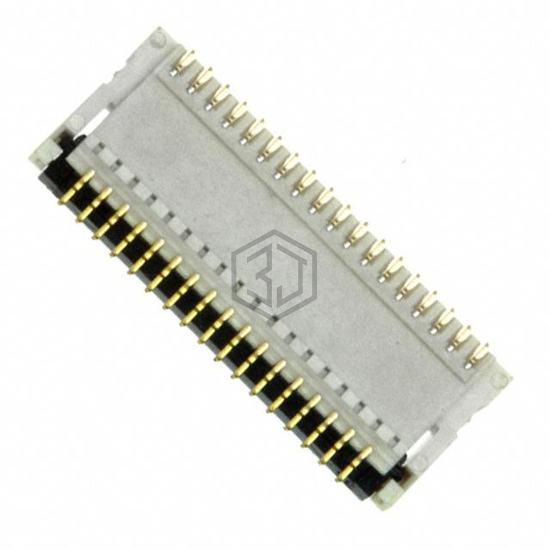

CONN FPC 35POS 0.30MM R/A
XF2B-3545-31A is a FFC, FPC (Flat Flexible) Connectors manufactured by Omron Electronics Inc-EMC Div. CONN FPC 35POS 0.30MM R/A. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -30°C ~ 85°C, voltage rating 50V, housing material Liquid Crystal Polymer (LCP), Halogen Free.
In Stock: 1,480
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top and Bottom |
| Number of Positions | 35 |
| Pitch | 0.012" (0.30mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.20mm |
| Height Above Board | 0.083" (2.10mm) |
| Locking Feature | Rotary Lock, Backlock |
| Cable End Type | Straight |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Features | - |
| Voltage Rating | 50V |
| Operating Temperature | -30°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for XF2B-3545-31A and get a quote within 24 hours.
