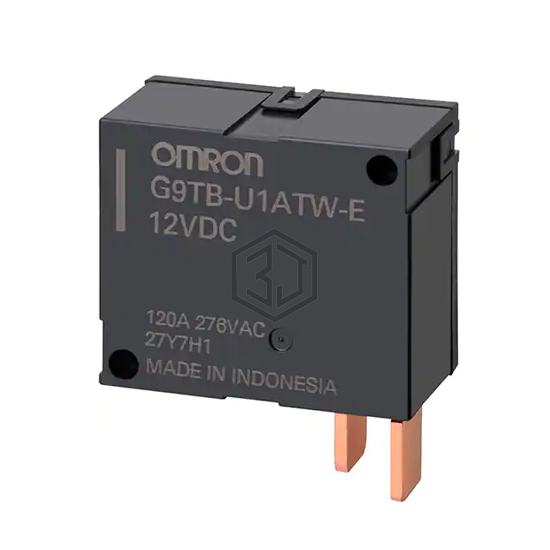

RELAY GEN PURPOSE SPST 120A 12V
G9TB-U1ATW-E DC12 is a Power Relays, Over 2 Amps manufactured by Omron Electronics Inc-EMC Div. RELAY GEN PURPOSE SPST 120A 12V. Key specifications: mounting type Free Hanging, operating temperature -40°C ~ 85°C, contact material Silver Alloy, termination style PC Pin, Weld Terminal.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Free Hanging |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 120 A |
| Switching Voltage | 276VAC - Max |
| Coil Current | 225 mA |
| Coil Type | Latching, Single Coil |
| Features | UL Pending |
| Termination Style | PC Pin, Weld Terminal |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 9.6 VDC |
| Must Release Voltage | - |
| Operate Time | 25 ms |
| Release Time | 25 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Alloy |
| Relay Type | General Purpose |
Submit your RFQ for G9TB-U1ATW-E DC12 and get a quote within 24 hours.
