RELAY GEN PURPOSE SPST 30A 24V

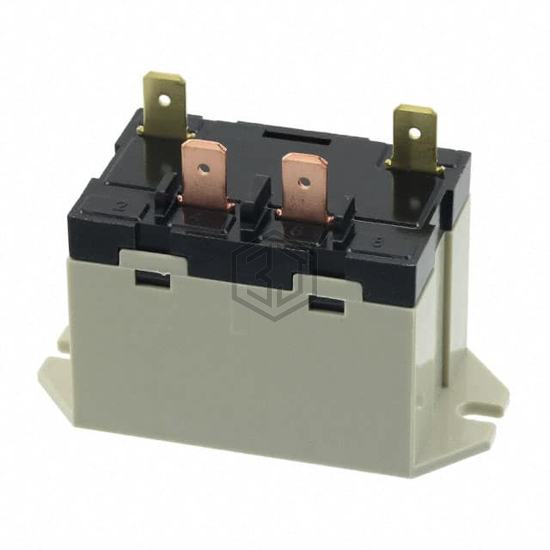

G7L1ATDC24 is a Power Relays, Over 2 Amps manufactured by Omron Electronics Inc-EMC Div. RELAY GEN PURPOSE SPST 30A 24V. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 60°C, contact material Silver Tin Indium (AgSnIn), termination style Quick Connect - 0.250" (6.3mm).
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 30 A |
| Switching Voltage | 250VAC - Max |
| Coil Current | 79 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 3.6 VDC |
| Operate Time | 30 ms |
| Release Time | 30 ms |
| Operating Temperature | -25°C ~ 60°C |
| Contact Material | Silver Tin Indium (AgSnIn) |
| Relay Type | General Purpose |
Submit your RFQ for G7L1ATDC24 and get a quote within 24 hours.
