RELAY GEN PURPOSE SPST 10A 48V

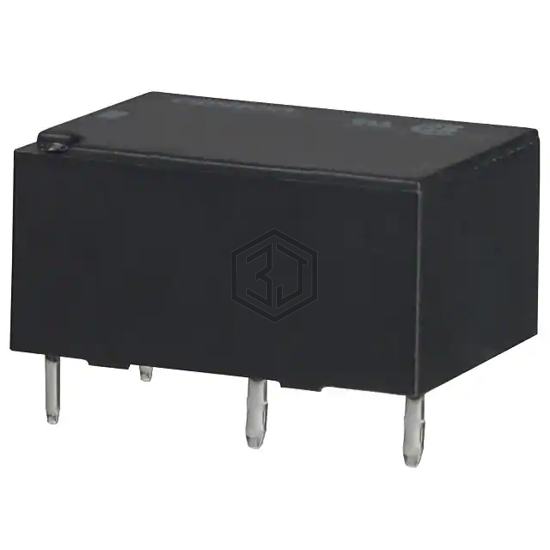

G6C-1114P-US-DC48 is a Power Relays, Over 2 Amps manufactured by Omron Electronics Inc-EMC Div. RELAY GEN PURPOSE SPST 10A 48V. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 70°C, contact material Silver Alloy, Cadmium Free, termination style PC Pin.
In Stock: 94
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 48VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 380VAC, 125VDC - Max |
| Coil Current | 4.2 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 33.6 VDC |
| Must Release Voltage | 4.8 VDC |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Operating Temperature | -25°C ~ 70°C |
| Contact Material | Silver Alloy, Cadmium Free |
| Relay Type | General Purpose |
Submit your RFQ for G6C-1114P-US-DC48 and get a quote within 24 hours.
