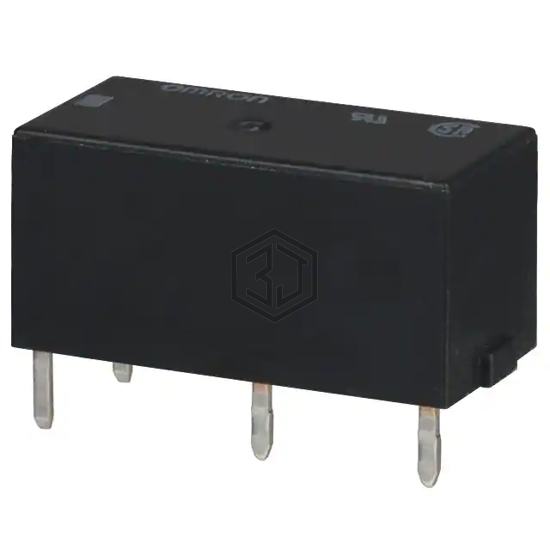

RELAY GEN PURPOSE DPST 5A 24V
G6B-2214P-US DC24 is a Power Relays, Over 2 Amps manufactured by Omron Electronics Inc-EMC Div. RELAY GEN PURPOSE DPST 5A 24V. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 70°C, contact material Silver Alloy, Cadmium Free, termination style PC Pin.
In Stock: 649
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Rating (Current) | 5 A |
| Switching Voltage | 380VAC, 125VDC - Max |
| Coil Current | 12.5 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 19.2 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Operating Temperature | -25°C ~ 70°C |
| Contact Material | Silver Alloy, Cadmium Free |
| Relay Type | General Purpose |
Submit your RFQ for G6B-2214P-US DC24 and get a quote within 24 hours.
