RELAY GEN PURPOSE SPST 15A 12V

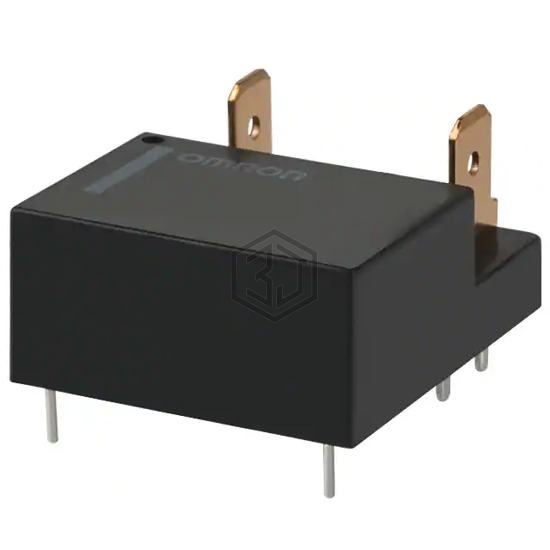

G5CA-1A-TP-E DC12 is a Power Relays, Over 2 Amps manufactured by Omron Electronics Inc-EMC Div. RELAY GEN PURPOSE SPST 15A 12V. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 70°C, termination style PC Pin, Quick Connect - 0.187" (4.7mm), coil voltage 12VDC.
In Stock: 198
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 15 A |
| Switching Voltage | 250VAC, 125VDC - Max |
| Coil Current | 16.7 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin, Quick Connect - 0.187" (4.7mm) |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | - |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Operating Temperature | -25°C ~ 70°C |
| Contact Material | - |
| Relay Type | General Purpose |
Submit your RFQ for G5CA-1A-TP-E DC12 and get a quote within 24 hours.
