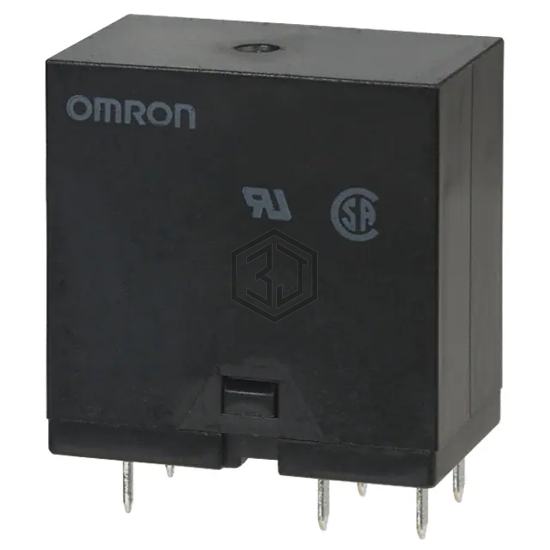

RELAY GEN PURPOSE SPST 15A 12V
G4W-1114P-US-TV8-HP-DC12 is a Power Relays, Over 2 Amps manufactured by Omron Electronics Inc-EMC Div. RELAY GEN PURPOSE SPST 15A 12V. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 55°C, contact material Silver Cadmium Oxide (AgCdO), termination style PC Pin.
In Stock: 47
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 15 A |
| Switching Voltage | 250VAC, 125VDC - Max |
| Coil Current | 66.7 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 9.6 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 20 ms |
| Release Time | 5 ms |
| Operating Temperature | -25°C ~ 55°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose |
Submit your RFQ for G4W-1114P-US-TV8-HP-DC12 and get a quote within 24 hours.
