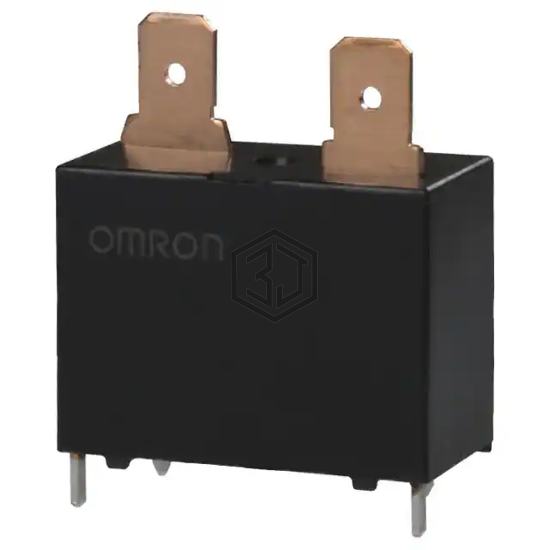

RELAY GEN PURPOSE SPST 20A 5V
G4A-1A-E DC5 is a Power Relays, Over 2 Amps manufactured by Omron Electronics Inc-EMC Div. RELAY GEN PURPOSE SPST 20A 5V. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 60°C, termination style PC Pin, Quick Connect - 0.250" (6.3mm), coil voltage 5VDC.
In Stock: 4,713
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 5VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 20 A |
| Switching Voltage | 250VAC - Max |
| Coil Current | 180 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin, Quick Connect - 0.250" (6.3mm) |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | - |
| Must Operate Voltage | 3.5 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 20 ms |
| Release Time | 10 ms |
| Operating Temperature | -20°C ~ 60°C |
| Contact Material | - |
| Relay Type | General Purpose |
Submit your RFQ for G4A-1A-E DC5 and get a quote within 24 hours.
